Key Components of a Butterfly Valve

The Importance of a Butterfly Valve in Industrial Applications

Butterfly valves are essential components in various industrial applications, known for their versatility and efficient control of fluid flow. Understanding the components of a butterfly valve is crucial for anyone involved in fluid handling systems. In this article, we'll delve into the essential parts that make up a butterfly valve, shedding light on their functions and significance in ensuring smooth operations.

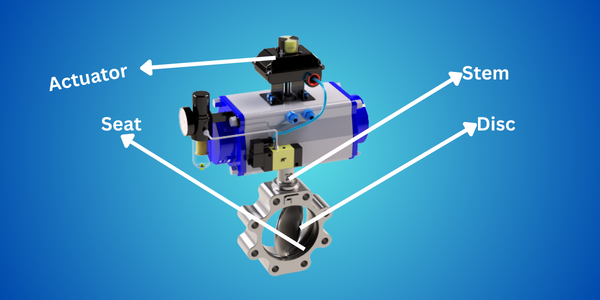

Key Components of a Butterfly Valve

 Body: The Outer Casing

The body of a butterfly valve is the main structural component. It typically comes in two types: wafer and lug-style. The body serves as the outer casing, providing stability and support for the other components. It houses the disc, stem, and seat, and it's responsible for connecting the valve to the pipeline. The body also features flange holes for easy installation and maintenance.

Disc: The Control Element

The disc, often referred to as the "butterfly," is a crucial element of the valve. It's a flat, circular plate that rotates within the body to control the flow of fluids. When the disc is positioned parallel to the flow direction, it allows for maximum flow, while turning it perpendicular effectively shuts off the flow. The disc is attached to the stem, enabling the operator to control the valve's position.

Stem: Connecting Control and Actuation

The stem is the component that connects the disc to the actuator, allowing for precise control of the disc's position. It extends through the body and connects to the actuator outside the valve. The stem must be durable and corrosion-resistant to ensure long-term functionality. Proper sealing between the stem and the body is essential to prevent leakage.

Seat: Ensuring a Secure Seal

The seat forms a tight seal around the disc to prevent fluid leakage when the valve is closed. It is typically made of resilient materials such as elastomers, which provide an effective seal even in high-pressure applications. Proper seat design and material selection are critical to the valve's performance and longevity.

Actuator: The Muscle Behind Operation

The actuator is the muscle of the butterfly valve, responsible for turning the disc to regulate flow. There are various types of actuators, including manual, pneumatic, hydraulic, and electric actuators. The choice of actuator depends on the specific application's requirements, such as the need for automation, precision, or response time.

Bearings and Bushings: Reducing Friction

Bearings and bushings play a vital role in reducing friction and ensuring smooth disc movement within the body. They are typically placed at the pivot points of the stem and can significantly impact the valve's performance and lifespan. Proper lubrication and maintenance of these components are essential.

O-rings and Gaskets: Ensuring a Leak-Free Design

O-rings and gaskets are used to create a secure seal between various valve components, such as the body and the seat or the body and the actuator. These sealing elements help prevent leakage and ensure the valve's reliability. Regular inspection and replacement of worn-out seals are necessary to maintain the valve's integrity.

Maintaining Butterfly Valve Performance

A butterfly valve may seem simple on the surface, but its efficiency and reliability rely on the proper design and functionality of its components. Understanding the key parts of a butterfly valve, from the body to the actuator, is essential for selecting, installing, and maintaining these valves in various industrial applications. By paying attention to these components, you can ensure the optimal performance of butterfly valves and contribute to the smooth operation of fluid handling systems.
